| الاسم التجاري: | Seacent |
| رقم الطراز: | وحدة صغيرة 2 × 8 |
| الـ MOQ: | 1 قطعة |
| شروط الدفع: | الاعتماد المستندي، تي/تي |
| القدرة على التوريد: | 100000 قطعة شهريًا |

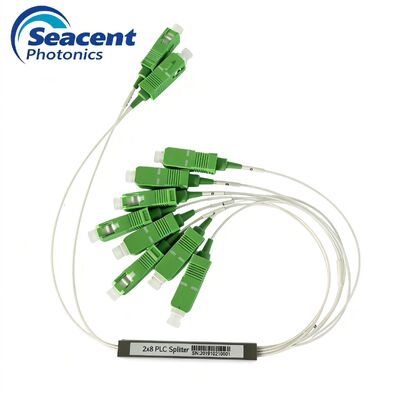

2x8 Fiber Optic PLC Splitter Micro Type Low Insertion Loss
The 2x8 micro PLC splitter from Seacent Photonics is built by precisely aligning and encapsulating silica glass waveguide circuits with fiber array chips, resulting in an extremely compact structure. This product strictly adheres to Telcordia GR-1209/1221 standards and delivers outstanding performance, including low insertion loss, low polarization-dependent loss (PDL), and high return loss. Its excellent channel uniformity ensures highly stable and reliable signal distribution.
Features:
Low Insertion Loss
Excellent Polarization Stability
Miniature, Compact Design
Outstanding Channel Uniformity
High Stability and Reliability
Compliant with Telcordia GR.1209 and GR.1221
Appliacation:
Specifications:
| Item | Parameter |
|
IL(dB) |
10.5 |
|
Uniformity (dB) |
≤1.0 |
|
PDL (dB) |
≤0.25 |
|
RL(dB) |
≥55 |
|
Directionality (dB) |
≥55 |
|
Fiber length (m) |
1.0 or customized |
|
Temperature stability (dB) |
-40℃- 85℃(≤0.5) |
|
Working temperature |
40℃- 85℃ |
|
Fiber type |
G657A1 or customized |
Note: The above IL is without the connector parameters.
2XN with connector optical splitter insertion loss increased by no more than 0.3dB in the above requirements.
Ordering information:
|
Product type |
Inlet and exit diameter |
Inlet and fiber length |
size |
|
1XN or 2XN 0102=1X2 0103=1X3 0104=1X4 0105=1X5 0106=1X6 0107=1X7 0108=1X8 0112=1X12 0116=1X16 0124=1X24 0132=1X32 0164=1X64 1128=1X128 |
2=0.9mm |
0=0.5M 1=1.0M 2=1.5M 3=2.0M 4=2.5M S=Customized |
2x2 to 4x7x60mm 2x8
2x12 to 4x12x60 mm 2x16
2x24 to 6x20x80 mm 2x32
2x64 6x40x100 mm |
|
|
