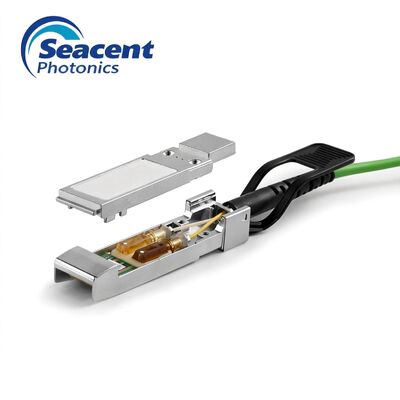

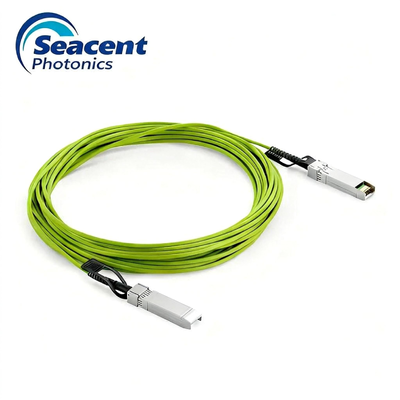

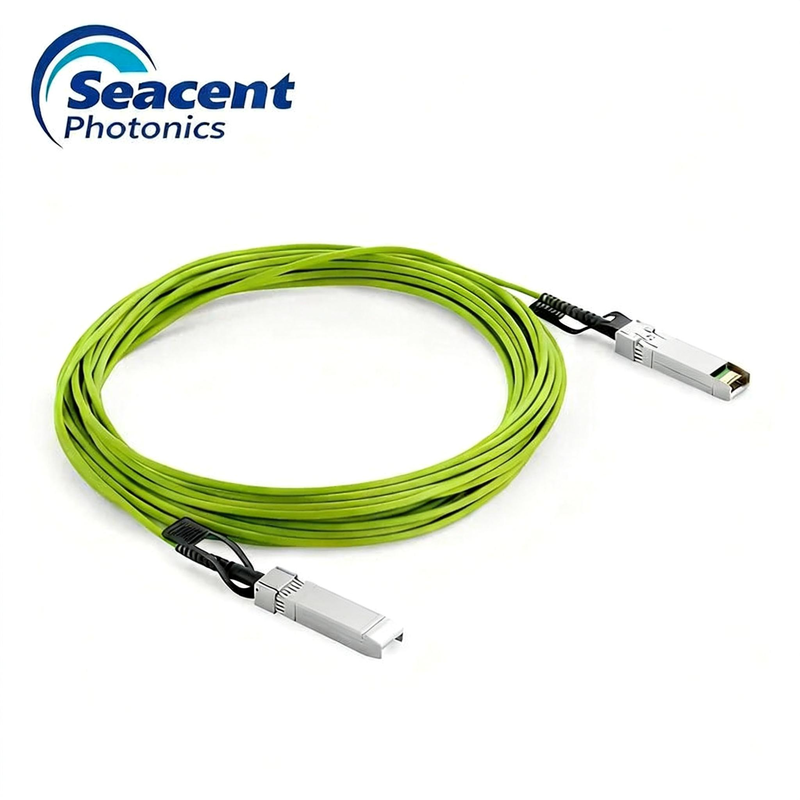

25G SFP28 AOC Active Optical Cables Multi-Mode
Product Features:
Hot-pluggable SFP28 form-factor connectors
850nm VCSEL laser and PIN photo-detector
Internal CDR circuits on both receiver and transmitter channels
Compliant with SFP28 MSA and IEEE 802.3by 25GBASE-SR
Data rate up to 25.78125Gbps
3.3V power supply voltage
Power consumption < 0.8W per end
RoHS compliant (lead free)
Applications:
25GBASE-SR Ethernet
Absolute Maximum Ratings:
| Parameter | Symbol | Min. | Max. | Unit |
|---|---|---|---|---|
| Power Supply Voltage | VCC | -0.5 | +3.6 | V |
| Storage Temperature | Tc | -40 | +85 | ℃ |
| Relative Humidity | RH | 0 | 85 | % |
| Parameter | Symbol | Min. | Typical | Max. | Unit |
|---|---|---|---|---|---|
| Supply Voltage | VCC | 3.15 | 3.3 | 3.45 | V |
| Operating Case Temp. (Standard) | Tca | 0 | — | +70 | ℃ |
| Operating Case Temp. (Industrial) | Tca | -40 | — | +85 | ℃ |
| Baud Rate Per Lane | DR | — | — | 25.78125 | Gbps |
| Fiber Bend Radius | Rb | 3 | — | — | cm |
|
|
